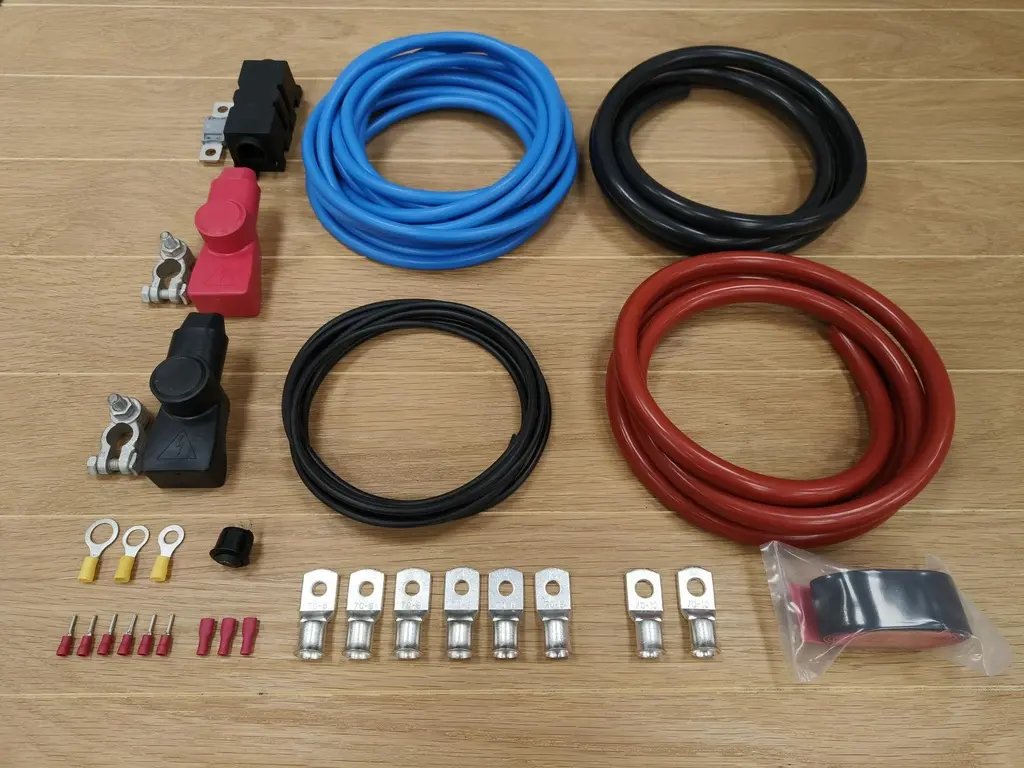

Complete Multiplus Wiring Kit - 1200VA

https://www.batteriesandsolar.co.uk/web/image/product.template/275878/image_1920?unique=0d947a4

With this all-in-one wiring solution, you can confidently install your Multiplus system without the hassle of sourcing individual components. Whether for professional or DIY installations, this kit ensures a smooth, efficient, and reliable setup.

£ 80.96 80.96000000000001 GBP £ 80.96 VAT Excluded

£ 82.58 VAT Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Internal Reference: 119712

Simplify the installation process of your 1200-1600VA Multiplus system with this Complete Multiplus Wiring Kit. Designed to connect a Victron Inverter/Charger to a Victron Lynx Distributor seamlessly, this kit ensures that you have all the components needed for a professional and reliable setup. Please note that the Victron Inverter/Chargers are not included in this kit but can be purchased separately.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

  • Comprehensive Kit: Includes all essential wiring components for connecting 1200-1600VA Multiplus systems.
  • Efficient Cabling: Pre-cut lengths and organized components make installation hassle-free.
  • Secure Connections: Heatshrink tubing and high-quality connectors ensure robust, insulated connections.
  • Safety First: Includes Mega Fuses and holders to protect your system from overcurrent.
  • Professional Finish: Terminal covers, spade connectors, and rocker switch for a tidy, user-friendly setup.

The kit contains the following items:

  1. Connectors & Terminals:
    • 6x Red Pin 12.0mm Single Unit (WT21)
    • 1x Yellow Ring Connector 13.0mm (WT54)
    • 1x Yellow Ring Connector 10.5mm (WT53)
    • 1x Yellow Ring Connector 8.4mm (WT52)
    • 26x Copper Tube Terminal 50-8 Single Unit (R50-8)
    • 62x Copper Tube Terminal 50-10 Single Unit (R50-10)
  2. Cabling:
    • 5x 3 Core 2.5mm Arctic Blue Cable (sold by the meter, A5A302B1R)
    • 2x 4mm Earth Cable (sold by the meter, A2XGY0040)
    • 4x 3 Core Automotive High Temp Thinwall Cable 0.75mm 14A (C301ZTW-30B)
    • 12x Battery Cable Hi Flex Black - 50mm 345A Single PVC (CSW4-10B)
    • 22x Battery Cable Hi Flex Red - 50mm 345A Single PVC (CSW4-10R)
  3. Safety Components:
    • 1x Mega Fuse Holder (FH1002BC)
    • 11x Mega Fuse 200A Blue (FU19-200)
  4. Insulation & Protection:
    • 1x Heatshrink Tubing 12.7mm Red (CHS21-12.7RED)
    • 1x Heatshrink Tubing 12.7mm Black (CHS21-12.7)
    • 31x Lighting Terminal Cover Red 35-70mm (457N3V02-10)
    • 11x Lighting Terminal Cover Black 35-70mm (457N3V14-10)
  5. Switches & Terminals:
    • 1x Black Circular Centre Off Rocker Switch (320016)
    • 21x Lighting Terminal Negative 8mm Stud (BT4 -)
    • 11x Lighting Terminal Positive 8mm Stud (BT4 +)
  6. Additional Accessories:
    • 43x Red Female Spade 4.8mm/0.8mm F/Insulated Single Unit (WT9)
