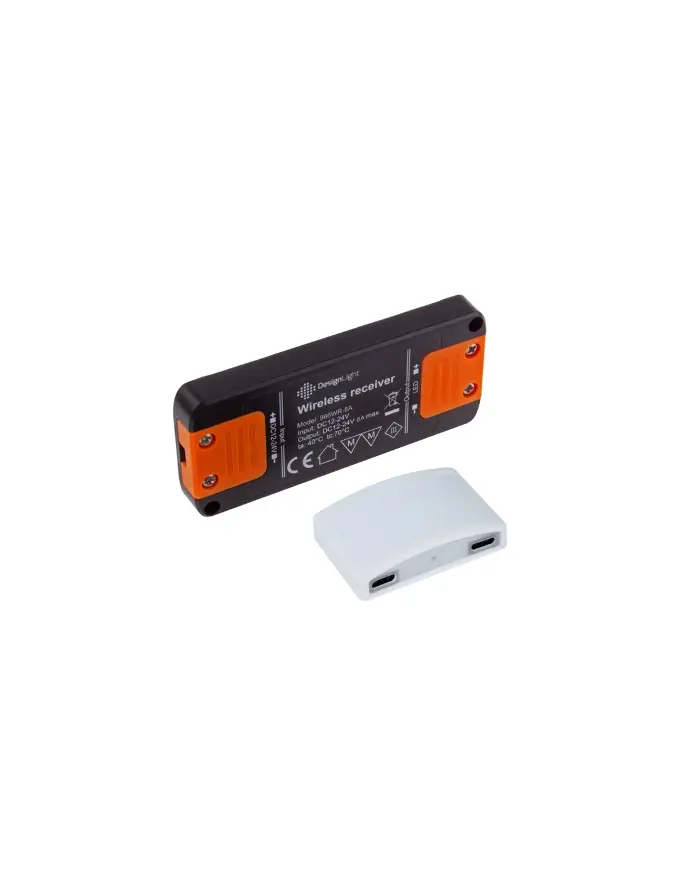

TEO set consists of:
- RF controller max 8A (96W/12V DC and 192W/24V DC);
- proximity switch with dimmer;
- battery charging cable (only available in the set);
- mounting components of the switch.
TEO operates in two working modes:
1). DOOR - this mode is dedicated to both hinged and sliding doors and fronts. The main advantage of the switch is that in a hinged door system, one switch applied in the middle can handle two leaves.
Operating range of the TEO switch in this mode is:
- up to 1 cm for black/dark furniture fronts;
- up to 3.5 - 4 cm for white/light furniture fronts.
2). MOVE - switch operates with an additional lighting dimming function (approaching/moving a hand in the switch area for more than 1 sec). The switch can be used in shelves, open recesses, cabinets, etc.
TEO advantages:
- convenient wireless control of LED lighting by radio up to 10 m;
- management of LED lighting with 12 or 24V DC and max power of 8A (96W/12V DC and 192W/24V DC);
- two independent working modes: DOOR and MOVE;
- functional switch for sliding and swinging doors and fronts (DOOR mode);
- possibility of dimming/brightening the light in the MOVE mode;
- no need to change batteries - it's rechargeable,
- simple surface mounting of the switch with use of dedicated components.
