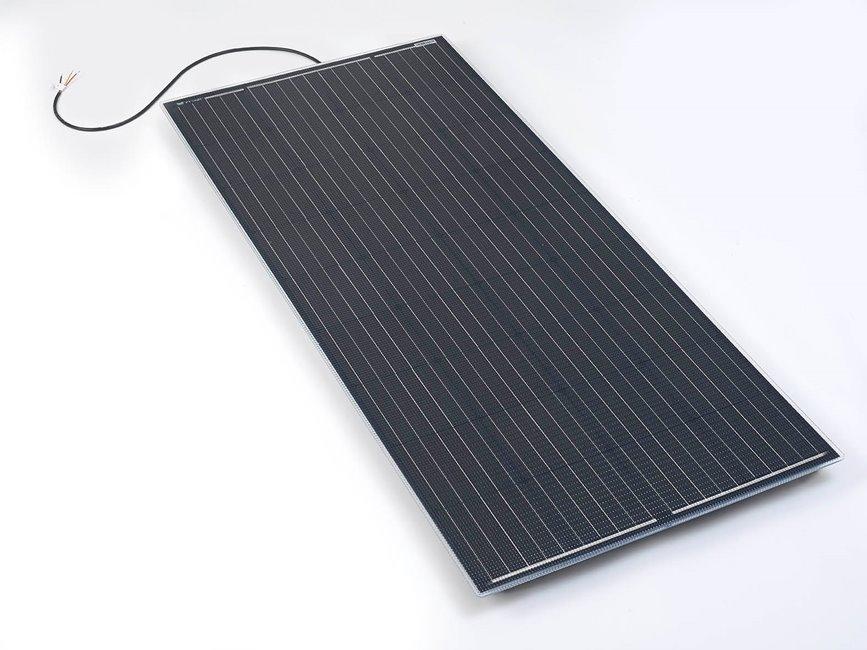

180W Double ETFE Flexi Solar Panel - Top Exit - STPVF180ET

https://www.batteriesandsolar.co.uk/web/image/product.template/274960/image_1920?unique=a39ac48

The 180W Flexi Double ETFE Solar Panel offers an efficient and durable solution for generating solar power on vehicles and boats. These semi-flexible panels boast a self-healing ETFE top layer, ensuring durability even in rugged conditions. Plus, they're completely waterproof, prevent hot spots, and feature a sleek, easy-to-install design.

£ 370.08 370.08 GBP £ 370.08 VAT Excluded

£ 370.08 VAT Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Internal Reference: 119308

The 180W Flexi Double ETFE Solar Panel is a comprehensive solution for efficient solar power generation on vehicles and boats. This kit includes a high-performance 180W semi-flexible solar panel designed with a robust ETFE laminate on both sides for enhanced durability and weather resistance. Ideal for flat or slightly curved surfaces, this panel is perfect for campervans, boats, and other mobile applications where space and weight are critical.

The solar panel features a dimpled surface pattern that maximizes light transmission to the high-efficiency monocrystalline cells, ensuring optimal power generation even in challenging conditions. The panel is IP67 rated for complete waterproofing and has been rigorously tested to withstand saltwater spray and UV exposure, making it highly reliable for marine and outdoor use.

Included in the kit is a 20A PWM charge controller, though there's an option to upgrade to a 15A MPPT Pro controller for increased solar yield. The kit also comes with a 0.9m attached cable, an additional 3m cable, a diode box, a fuse and holder, elastic adhesive for secure installation, and detailed instructions. This solar panel kit is designed for easy installation and provides a reliable power source to keep your leisure battery charged and ready for use.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Completely waterproof
Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicone, guaranteeing no water ingress.

Superior design
There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 0.9m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

Easy fix
The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Henkel MS939 elastic adhesive, or similar.

Installation method
Please only use the glue pattern below for land based vehicles (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Size 670x1520x4mm
Weight (Kg) 6,8kg
*Watts per day (W) 1080
*Amp hours per day (A) 52,7
Charge controller 20A
Pmax (WP)
180
Vmp (VDC)
20,5
Imp (A) 8,79
Voc (V) 24,0
Isc (A)9,22


*Watts and Amp hours/day based on six hours of average daily peak sunshine hours.

Datasheet
