The benefits of ETFE

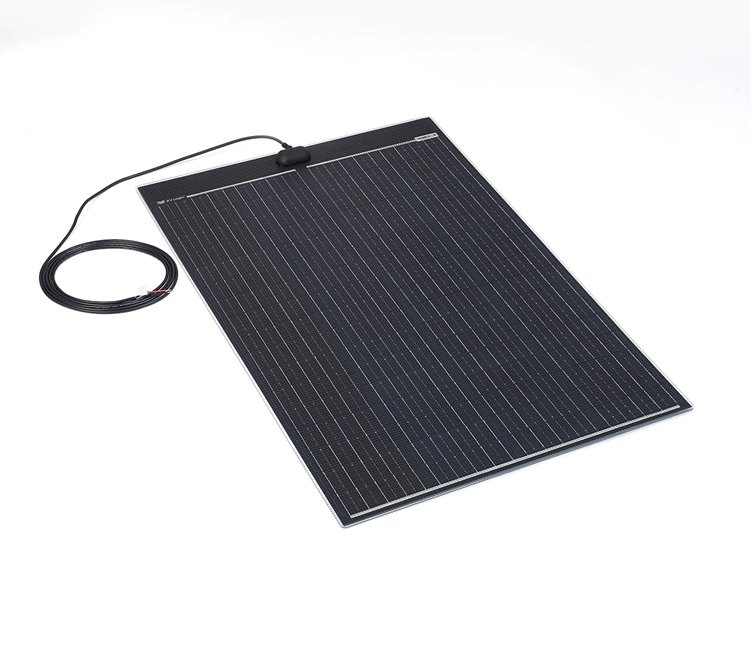

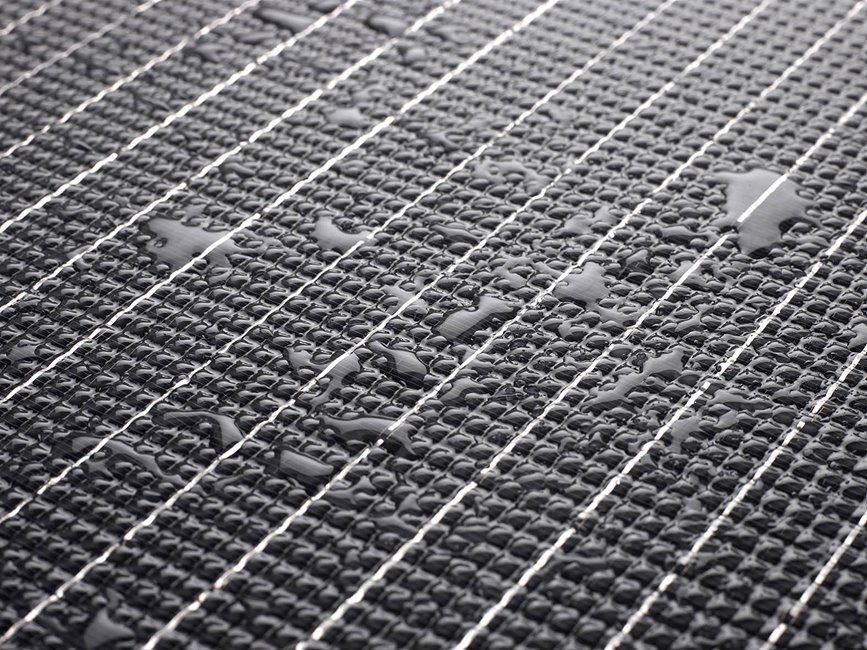

The dimpled surface pattern in our Flexi double ETFE Flexi panels deliver excellent light transmission to the high efficiency monocrystalline solar cells maximising solar power generation.
The panels are suitable for flat and slightly curved surfaces and perfect for campervans and leisure vehicle roofs where panel weight needs to be minimised.
Completely waterproof
Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicone, guaranteeing no water ingress.
Superior design
There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.
Easy fix
The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Henekel MS939 elastic adhesive, or similar.
Installation method
Please only use the glue pattern below for land based vehicles and applications (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.
Add a controller
The PV Logic range of charge controllers includes the 10A and 20A dual battery PWM models and, for high performance and the ultimate in rapid solar charging, there is the MPPT Pro series. Both are capable of charging 12V and 24V batteries.
Our MPPT Pro charge controllers increase solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from a solar panel system to actively match any battery's requirements. This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.
The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing.
