  2. Red Neon Panel Mount Indicator, 230V ac, 8mm Mounting Hole Size, Lead Wires Termination - 237-0339

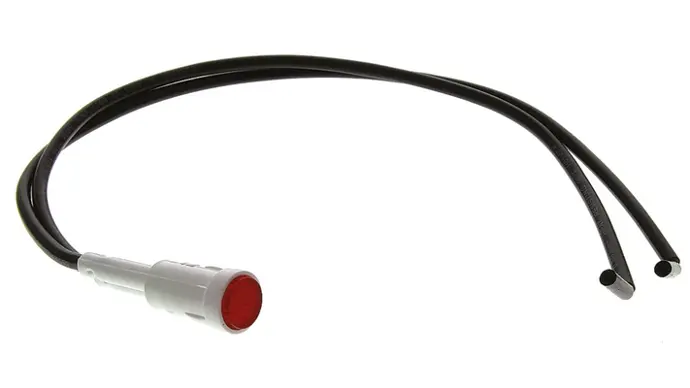

Red Neon Panel Mount Indicator, 230V ac, 8mm Mounting Hole Size, Lead Wires Termination - 237-0339

https://www.batteriesandsolar.co.uk/web/image/product.template/274963/image_1920?unique=5006f30
A reliable and durable red neon panel mount indicator designed for easy installation in various electrical applications. It features an 8mm mounting hole size and lead wires termination, making it suitable for quick and hassle-free setups.

£ 4.39 4.39 GBP £ 4.39 VAT Excluded

£ 4.39 VAT Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Internal Reference: 119303

The Red Neon Panel Mount Indicator, model 237-0339, is designed to provide clear visual signals in electrical applications. Featuring an 8mm mounting hole size, this indicator is easy to install using snap-in fixing, eliminating the need for additional hardware. The 7.5mm coloured diffused polycarbonate lens ensures high visibility, while the white nylon 6.6 bezel and body offer durability. With a long life expectancy of up to 20,000 hours, this indicator is a reliable choice for prolonged use. It operates at a temperature of up to 85°C and has various safety approvals including CSA, DEMKO, and SEV.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

  • Easy Installation: Snap-in fixing for quick and hassle-free setup.
  • High Visibility: 7.5mm coloured diffused polycarbonate lens.
  • Durable Construction: White nylon 6.6 bezel and body.
  • Long Life Expectancy: Up to 20,000 hours of operation.
  • Operating Temperature: Up to 85°C.
  • Safety Approvals: CSA, DEMKO, SEV certified.
  • Versatile Light Sources: Compatible with neon, fluorescent, filament lamps, or LEDs.
  • Multiple Colour Options: Available in red, amber, green, blue, and clear lenses.
  • Compact Design: Fits into an 8mm mounting hole size.

FeatureSpecification
Mounting Hole Size8mm
Lens Diameter7.5mm
Lens MaterialColoured diffused polycarbonate
Bezel and Body MaterialWhite nylon 6.6
Fixing MethodSnap-in fixing, no additional hardware required
Life Expectancy20,000 hours (green: 5,000 hours)
Operating Temperature85°C
ApprovalsCSA, DEMKO, SEV
Light Sources AvailableNeon, Fluorescent, Filament lamp, LED
Colours AvailableRed, Amber, Green, Blue, Clear
Maximum Striking VoltagesStandard brightness: 65Vac / 90Vdc, High brightness: 85Vac / 135Vdc
Neon Lamp LifeTypically 25,000 hours (green fluorescent lamps: 20,000 hours)
False Signal PreventionFit a 100k resistor across supply wires close to the indicator assembly
Body and Base MaterialsNylon 6.6
Lens MaterialPolycarbonate
Terminal MaterialsBrass (electro-tin plated), with some exceptions as flash silver or nickel plated
Other FeaturesPVC, silicone temperature rating, wire leads, solid wires, panel hole size, terminal temperature rating
