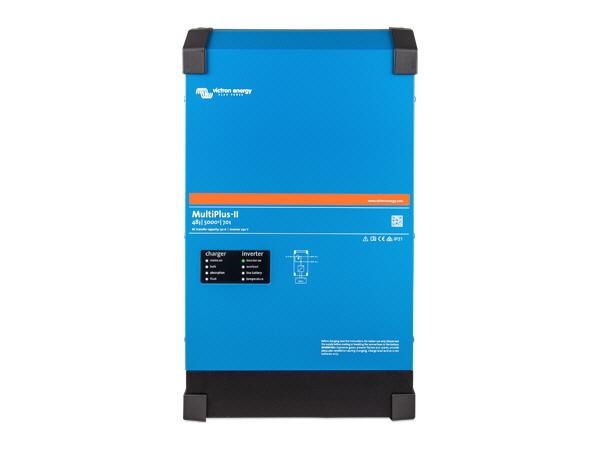

Victron Energy MultiPlus-II 48/5000/70-50 230V PMP482505012

https://trade.batteriesandsolar.co.uk/web/image/product.template/269984/image_1920?unique=bd629b9

The Victron MultiPlus-II 48/5000/70-50 230V is the latest inverter/charger from Victron Energy, designed to optimise energy management for both off-grid and grid-connected systems. Combining the functions of the MultiPlus and MultiGrid, this advanced unit features PowerControl and PowerAssist for seamless integration with your energy system, ensuring efficient power distribution and battery charging. Its compact design incorporates a true sine wave inverter, a sophisticated battery charger, and a high-speed AC transfer switch, making it a reliable choice for those looking to maximise energy storage and self-consumption.

£ 642.40 642.4 GBP £ 642.40 VAT Excluded

£ 642.40 VAT Excluded

Not Available For Sale

  • 1 Inverter Input Voltage
  • 2 Inverter Output Voltage
  • 3 Inverter Output Power (VA)
  • 4 Charger Input Voltage
  • 5 Charger Output Voltage
  • 6 Charger Output Current
  • 7 Transfer Switch (Amps)
  • ​8 IP Rating
  • ​9 Bluetooth
  • 10 Brand
  • ​11 Warranty

This combination does not exist.

Contact Us
1 Inverter Input Voltage: 38-66V
2 Inverter Output Voltage: 230V
3 Inverter Output Power (VA): 5000VA - 4000W
4 Charger Input Voltage: 187-265V
5 Charger Output Voltage: 57.6V
6 Charger Output Current: 70A
7 Transfer Switch (Amps): 50A
​8 IP Rating: IP21
​9 Bluetooth: No
10 Brand: Victron Energy B.V.
​11 Warranty: 5 Years

Terms and Conditions

Internal Reference: 119007

The Victron MultiPlus-II 48/5000/70-50 230V is a highly advanced solution from Victron Energy, blending ESS (Energy Storage System) functionality with cutting-edge power management. Designed for both off-grid and grid-connected energy systems, the MultiPlus-II offers PowerControl and PowerAssist features, which enable you to set the maximum current drawn from a generator or grid and intelligently use excess power for battery charging or to support limited peak power demands. The unit is equipped with an external current transformer to optimise self-consumption, and it is compatible with solar PV systems.

Incorporating a true sine wave inverter, a high-speed AC transfer relay, and a sophisticated battery charger, the MultiPlus-II offers unparalleled reliability, ease of installation, and flexibility. Additionally, the unit can be monitored and controlled both locally and remotely via the VRM portal, ensuring optimal performance at all times.

With Victron’s commitment to quality and innovation, the MultiPlus-II delivers superior performance, efficiency (up to 96%), and advanced protection systems. Regular firmware updates add new features based on user feedback, enhancing the product’s functionality over time.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

  • True sine wave inverter for clean, stable power output.
  • PowerControl and PowerAssist to optimise power use and battery charging.
  • ESS functionality suitable for both off-grid and grid-connected PV systems.
  • External current transformer option for self-consumption optimisation (max. 32A).
  • Anti-islanding protection ensures safe operation in off-grid setups.
  • On-site monitoring and control via MK3-USB interface.
  • Remote monitoring and configuration through the VRM portal with a GX device.
  • Compact design with easy-to-follow installation instructions and colour-coded wiring diagrams.
  • High maximum efficiency of up to 96%.
  • 5-year warranty for peace of mind.

SpecificationDetails
DC Input38-66V (48V)
Continuous Output Power5000VA (4000W)
Peak Power9000W
Maximum Efficiency96%
Zero-Load Power2-18W
AC Input187-265VAC, 45-65Hz
Max Charge Current70A (48V)
AC Transfer Relay50A
Dimensions565 x 323 x 148mm
Weight29kg
Warranty5 Years
Available Models48V
