200w MHD Flexi Solar Panel - top exit STPVFU200

https://www.batteriesandsolar.co.uk/web/image/product.template/269878/image_1920?unique=5f26a7c

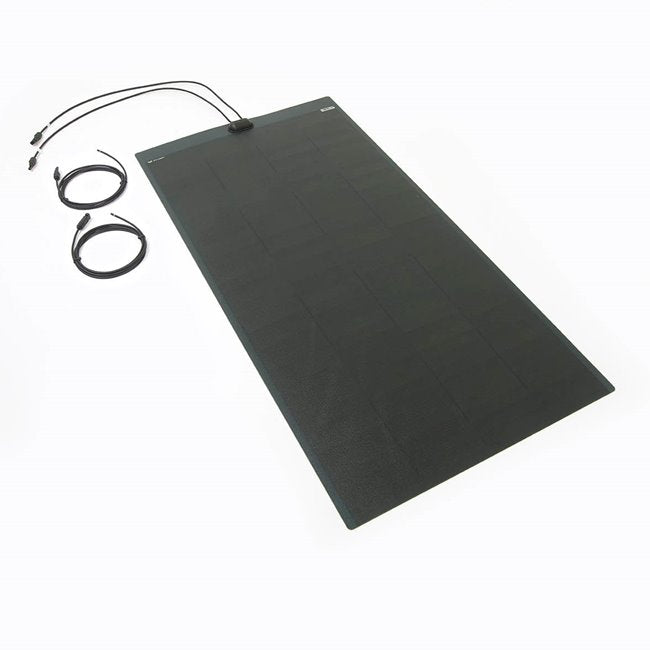

​200w MHD Flexi Solar Panel - top exit Manufactured using the latest solar cell technology to create super efficient power generation, the 200wp Mono High Density (MHD) Flexi solar panel is hard wearing and ultra lightweight. It is perfect for energy hungry applications as multiple panels can joined together to create a solar array. The 200w panel is ideal use on a motorhome roof or the cabin of a boat to maximise power output in the space available. Suitable for both flat surfaces as well as those with a slight curve, the 200w panel delivers up to 1200wh per day and comes with a four year warranty. The panel is supplied with 2 x 90cm cables with MC4 connectors plus an extra 2 x 3m cables with male/female MC4 connectors plus detailed instructions. Technical Specifications 110W 1080 x 540 x 2mm 2.01 660 36.72 10Ah 18.0 6.12 21.2 6.48 Power Size Weight (kg) Watts per day (W) Amp hours per day (A) Charge Controller Vmp (VDC) Imp (A) Voc(V) Isc(A) 110W (R) 1050 x 550 x 2mm 2.01 660 35.52 10Ah 18.6 5.92 22 6.27 150W 1440 x 560 x 2mm 2.3 900 48.42 10Ah 18.6 8.07 22.0 8.55 150W(R) 1390 x 560 x 2mm 2.7 900 48.42 10Ah 18.6 8.07 22.0 8.55 200W 1435 x 710 x 2mm 3.5 1200 49.2 20Ah 24.4 8.20 28.8 8.69 200W(R) 1380 x 890 x 2mm 3.4 1200 49.2 20Ah 24.4 8.20 28.8 8.69 250W 1475 x 890 x 2mm 4.5 1500 61.50 20Ah 24.4 10.25 28.8 10.86 250W(R) 1420 x 890 x 2mm 4.1 1500 64.14 20Ah 23.4 10.69 27.6 11.32 290W 1650 x 890 x 2mm 5.2 1740 63.54 20Ah 27.4 10.59 32.3 11.22 290W(R) 1710 x 890 x 2mm 4.6 1740 71.34 20Ah 24.4 11.89 28.8 12.60 (R) - Rear Exit Key Vmp - Nominal voltage Imp - Nominal current Isc - Short circuit current Watts and Amp hours/day based on six hours of average daily peak sunlight hours. Data Sheets Data Sheet

£ 413.58 413.58 GBP £ 413.58 VAT Excluded £ 496.30

£ 413.58 VAT Excluded £ 496.30
