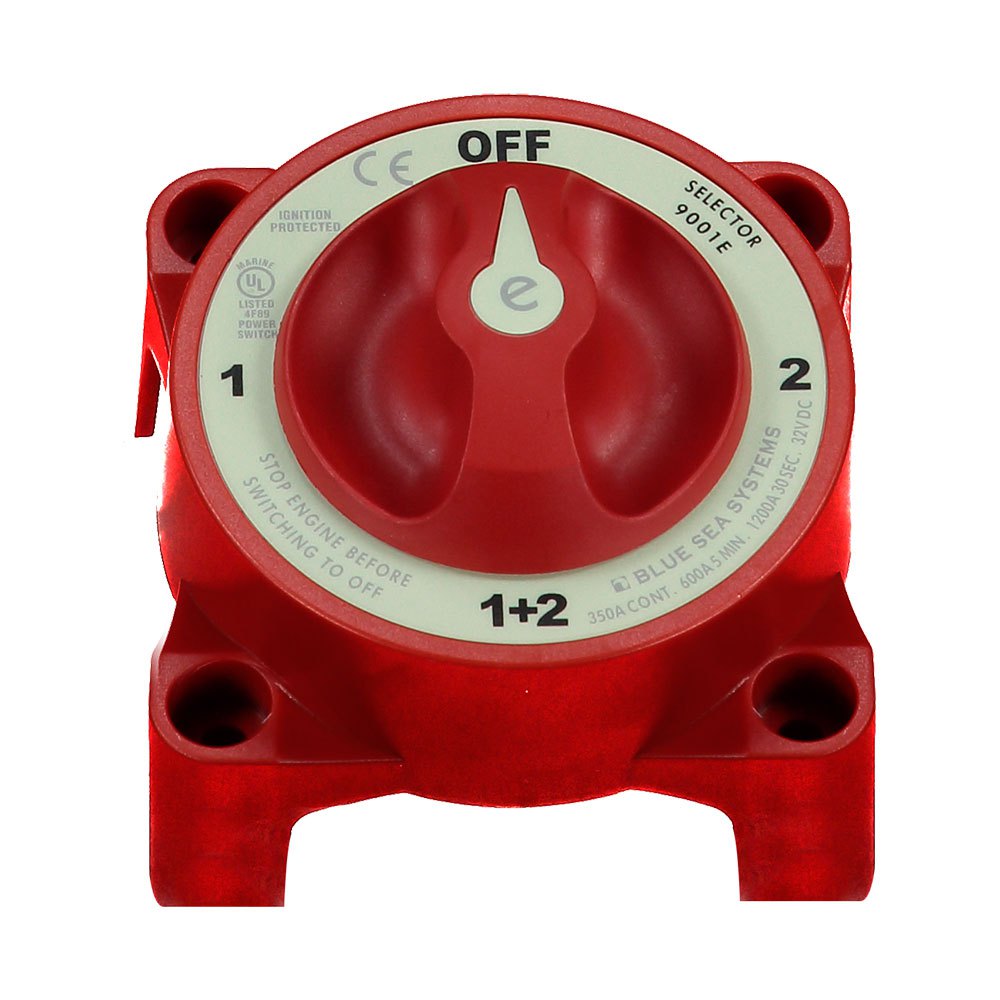

Blue Sea Systems Switch Battery E-Series Selector 4 Position Red - 9001EB-BSS

Blue sea systems E Series Selector Battery Switch The Blue Sea Systems E Series Selector Battery Switch is a reliable and versatile solution for managing battery banks on boats and marine vehicles. Designed with a make-before-break contact system, it allows for seamless switching between battery banks without any power interruption. The switch is ignition-protected, ensuring safe installation on gasoline-powered boats. Its case design allows for convenient surface or rear panel mounting, providing flexibility in installation. This selector battery switch includes an Alternator Field Disconnect (AFD), enhancing its functionality. With four switch positions, it empowers users to choose between different battery banks effortlessly. The maximum voltage capacity of 32V DC makes it suitable for various marine applications. Constructed with durability in mind, the switch has a continuous rating of 350A and an intermittent rating of 600A for 5 minutes, ensuring reliable performance under different load conditions. The cranking rating for 30 seconds at 1200A makes it capable of handling high-demand situations. The switch accepts 4/0 AWG cables and provides a secure and efficient solution for battery management. Important Notice: Please note that the images of the product shown above are for illustrative purposes only. While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer. We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product. If you have any questions or concerns, please feel free to contact our customer support team for further assistance at  support@batsol.co.uk or phone us at 01752 656270. At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you. Thank you for choosing Batteries and Solar for your purchase. Key Features Switches isolated battery banks to all loads or combines battery banks to all loads Make-before-break contact design allows switching between battery banks without power interruption Ignition protected€”safe for installation aboard gasoline-powered boats Case design allows surface or rear panel mounting Includes Alternator Field Disconnect (AFD) 4 switch positions for versatile control Maximum voltage of 32V DC Continuous rating of 350A, with an intermittent rating of 600A (5 minutes) Cranking rating for 30 seconds at 1200A Accepts 4/0 AWG cables with a cable clearance of 1.10 inches Terminal stud size: 3/8´´ - 16 (M10) Sturdy construction with tinned copper stud material Specifications
Specification Details Switch Type Selector 4 Position Switch Positions 4 Battery Combine Yes Alternator Field Disconnect No Maximum Voltage 32V DC Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating 350A Intermittent Rating 600A (5 min) Cranking Rating 30 sec 1200A Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm) Cable Size to Meet Ratings 4/0 AWG (120mm²) Mounting Holes Accept 1/4´´ (M6) Screw Stud Material Tinned Copper Terminal Stud Size 3/8´´ - 16 (M10) Weight 1.30lb (0.59 kg)
