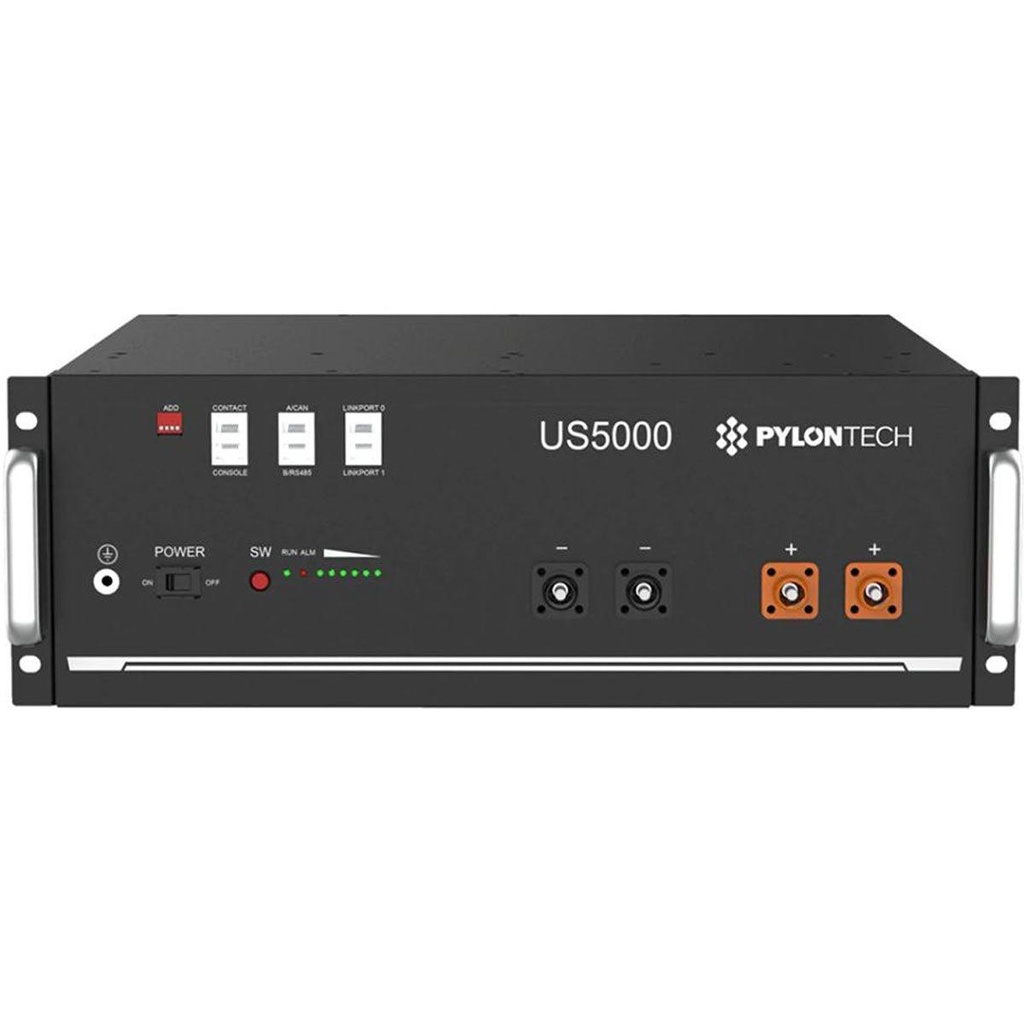

Pylontech 4.8KWh US5000 Li-Ion Battery PYLON 4.8KWH US5000 LI-ION BAT

https://batsol123-bat-sol-odoo-13052024-main-13132598.odoo.com/web/image/product.template/268853/image_1920?unique=91301ad
The  Pylontech US5000 is a cutting-edge lithium iron phosphate (LiFePO4) battery designed for modern energy storage solutions. With a capacity of  4.8 kWh and a remarkable depth of discharge (DoD) of  95%, this battery is ideal for off-grid systems, hybrid applications, and self-consumption setups.

£ 1,044.45 1044.45 GBP £ 1,044.45 VAT Excluded

£ 1,044.45 VAT Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Internal Reference: 114715

The Pylontech US5000 Li-Ion Battery stands out in the energy storage market for its combination of high capacity, modular flexibility, and robust safety features. With an exceptional DoD and compatibility with a broad range of solar inverters, it is a smart choice for both residential and commercial applications. This battery is not only a reliable power source but also a future-proof investment, given its potential for system expansion and longevity.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

High Capacity: The US5000 provides 4.8 kWh of energy storage, with a usable capacity of 4.56 kWh due to its high DoD.

Modular Design: The battery's modular design allows users to easily expand their energy storage system by daisy-chaining multiple units together, supporting installations of up to 72.96 kWh without needing additional communication hubs.

Compatibility: Compatible with 35 solar inverter brands, including Voltacon, allowing for seamless integration into existing systems.

Remote Firmware Upgrade: The battery can be updated remotely via an internet connection, ensuring that the system remains up-to-date with the latest features and improvements.

Robust Performance:

  • Continuous Discharge Rate: 2400 W
  • Maximum Discharge Rate (5 Minutes): 4800 W
  • Surge Discharge Rate (15 Seconds): 5808 W
  • Maximum Charge Rate (5 Minutes): 4800 W

Safety Features: Equipped with four levels of current protection, including charging/discharging MOS, dual passive and active fuses, and a pre-charge circuit to safeguard battery operation.

Extended Life Expectancy: Designed for over 8,000 cycles at an ambient temperature of 25°C, with a life expectancy of 15 years.

Compact Dimensions:

  • Weight: 39 kg
  • Package Dimensions: 560 x 510 x 260 mm

Warranty: Comes with a 5-year warranty, extendable depending on registration and usage.

SpecificationDetails
BrandPylontech
ModelUS5000
Battery TypeLithium Iron Phosphate (LiFePO4)
Nominal Energy4800 Wh
Usable Capacity4.56 kWh
Depth of Discharge (DoD)95%
Voltage48 V
Weight39 kg
Dimensions (mm)560 x 510 x 260
Continuous Discharge Rate2400 W
Maximum Discharge Rate (5 Min)4800 W
Surge Discharge Rate (15 Sec)5808 W
Maximum Charge Rate (5 Min)4800 W
Cycle LifeOver 8000 cycles at 25°C ambient
Warranty5 years (extendable)
Remote Firmware UpgradeYes
Parallel CapabilityUp to 16 units
