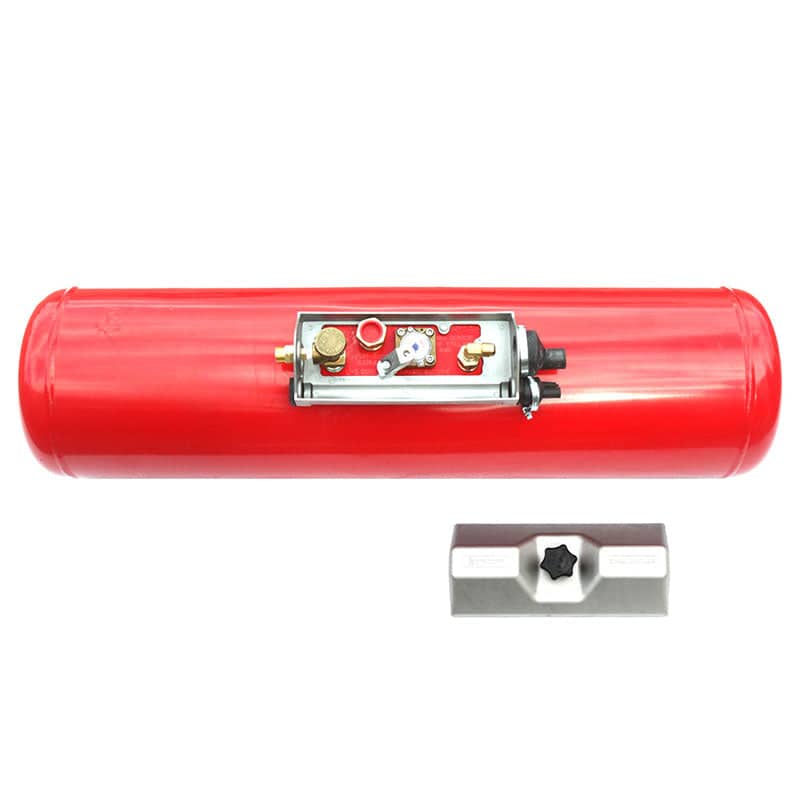

16 Litres Motorhome Gas Tank Only - Ø200mm by 585mm with set of valves and box - 400001
16 Litres Motorhome Gas Tank 200mm by 1070mm with set of valves and box
Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase.
The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station.
Important Notice:
Please note that the images of the product shown above are for illustrative purposes only.
While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.
We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.
If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.
At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.
Thank you for choosing Batteries and Solar for your purchase.
Key Features
Manual Outlet Valve: With thread without adapter: 1/4" NPT, with adapter: W21.8 LH.
Over Pressure Relief Valve (PRV): Activates in case of sudden pressure increase (over 27 bar), releasing excess gas to the environment.
Gas Level Float with Mechanical Gauge: Provides an indication of the gas level inside the tank.
Filling Valve with 80% Cut Off Valve (OPD): Ensures safe refilling by cutting off at 80% capacity. Female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC.
Specifications
Valves
The valves starting from the left are:
Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH
over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment
gas level float with mechanical gauge
filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC
Specifications
Internal Reference:
113614
