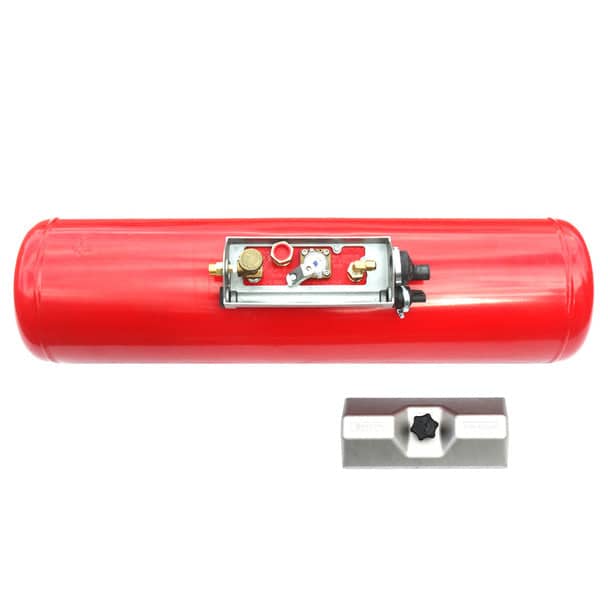

40 Litres Motorhome Gas Tank Only - Ø300mm by 647mm with set of valves and box - 400009

Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase. The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station. The valves starting from the left are: 1. Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH2. over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment3. gas level float with mechanical gauge4. filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC Specifications Diameter 300mm Length 647mm Tank weight 17.2kg Usable capacity 32L (16.64kg) Full tank weight 33.2kg
