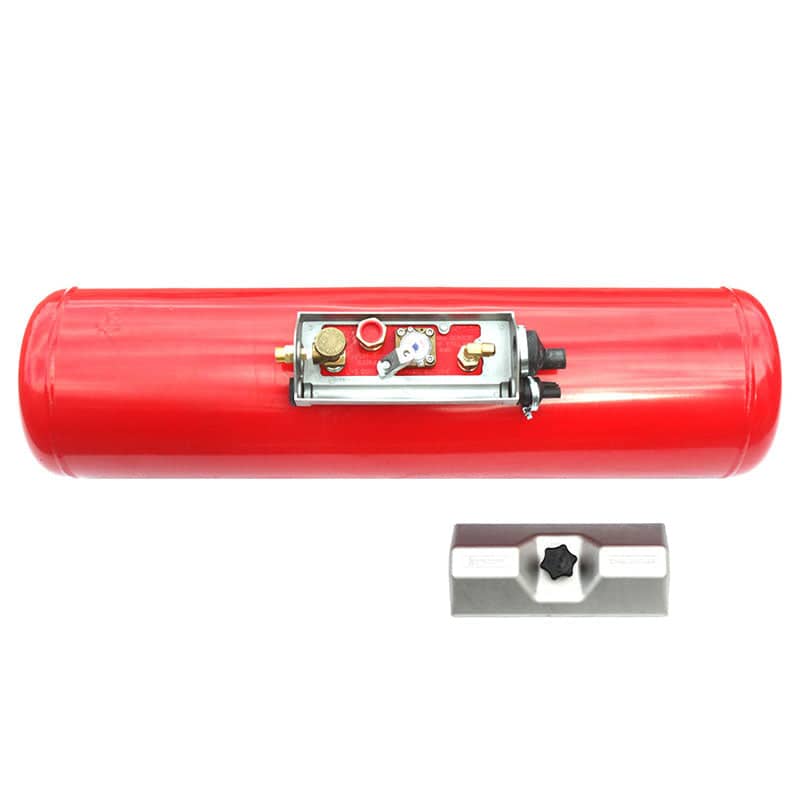

40 Litres Motorhome Gas Tank Only with Feet - Ø270mm by 792mm with set of valves and box - 400088

https://trade.batteriesandsolar.co.uk/web/image/product.template/268714/image_1920?unique=6ad5ffc

40 Litre Motorhome Gas Tank with Feet 270mm by 792mm 40 Litre Motorhome Gas Tank with Feet 270mm by 792mm with set of valves and box. Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase. The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station. This is a special version with 4 mounting feet. " https://www.batteriesandsolar.co.uk/wp-content/uploads/2022/07/valve-plate-4-hole-motorhome-gas-tank.jpg"> The valves starting from the left are: Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH. Over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment. Gas level float with mechanical gauge. Filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC. Tank Specifications (marked in red) Diameter [mm] Length [mm] Capacity [L] 80% capacity Empty weight [kg] Full tank weight [kg] 200 540 15 12L (6.18kg) 12.8 19 200 721 20 16L (8.32kg) 15 23 200 891 25 20L (10.4kg) 16.8 26.8 200 1070 30 24L (12.48kg) 18.9 30.9 230 645 23 18L (9.36kg) 14.5 23.5 230 822 30 24L (12.48kg) 16.5 28.5 230 1014 38 30L (15.6kg) 19.2 34.2 270 605 30 24L (12.48kg) 14.6 26.6 270 785 40 32L (16.64kg) 17.2 33

£ 365.61 365.61 GBP £ 365.61 VAT Excluded

£ 365.61 VAT Excluded

Not Available For Sale

This combination does not exist.


Internal Reference: 113598
