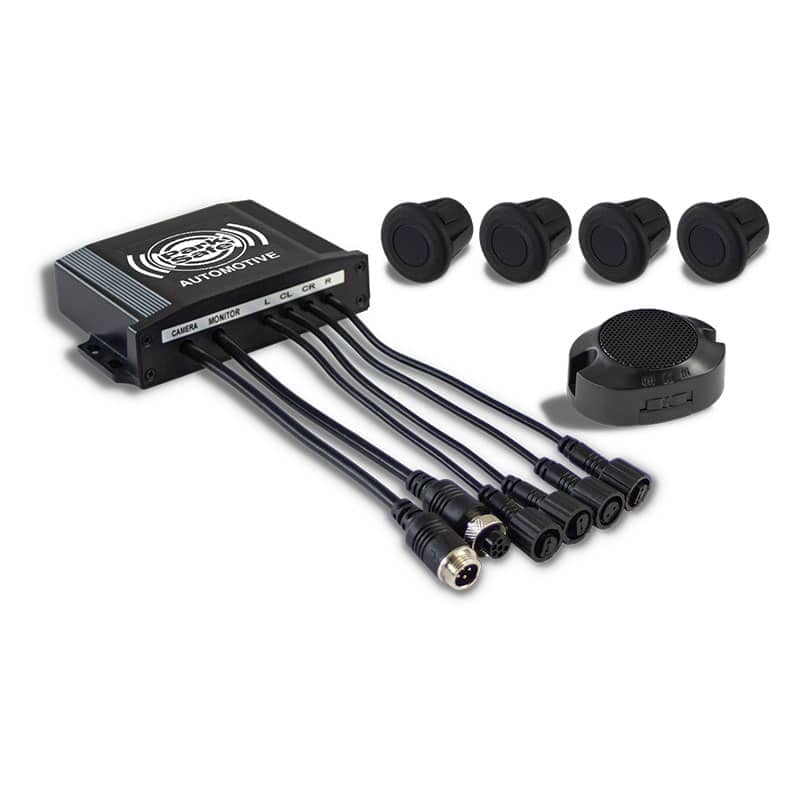

4 Sensor Side Detection with Video Overlay PSVID.1

https://trade.batteriesandsolar.co.uk/web/image/product.template/267561/image_1920?unique=6ad5ffc
Parksafe Automotive Ltd 4 Sensor Side Detection with Video Overlay PSVID.1 We offer a range of ultrasonic sensor systems including, Side Detection, Wireless, and Rear sensors. They all provide their own particular benefits from helping to reverse safely to nearside blind spot awareness; particularly relevant where cyclists and pedestrians can otherwise go unseen. Our Side Detection System is fitted to the side of a vehicle increasing safety when turning or when manoeuvring at low speed. Particularly relevant for near side blind spot safety solutions where cyclists or pedestrians can otherwise go undetected.   Specifications Power: 10-36 Volts DC Operating Current: 150mA Operating Temp: -20 to 80C Operating Frequency: 39.3 - 40.7 KHz Detection Angle: 120H/ 60V Distance Detection Accuracy: 1cm Detection Range: 0.05 to 1.5M Buzzer Volume: 75-105dB Horizontal detection angle: 120° Vertical detection angle: 60° Video Input: 4 Pin Aviation Video Input: Male Phono Trigger Input: X1 Trigger Output: X1 Sensors: 4 x 22mm Black rubber flat mount Control Box: IP68 Waterproof Box Contents 1 x CPU 4 x Sensor Heads 1 x Push Switch 1 x 2 Tone Buzzer 1 x Wiring Loom 20 x Cable Tie Sticky Pad Manual You will need to use a signal indicator switch with these, part code: PSPK3.DVS Approvals: CE, ROHS, E8, 10R, 04, 7658

£ 212.15 212.15 GBP £ 212.15 VAT Excluded

£ 212.15 VAT Excluded

Not Available For Sale

This combination does not exist.


Internal Reference: 112395
