3 Sensor Step Detection System PSST1.3

https://www.batteriesandsolar.co.uk/web/image/product.template/267559/image_1920?unique=ba3f2d9

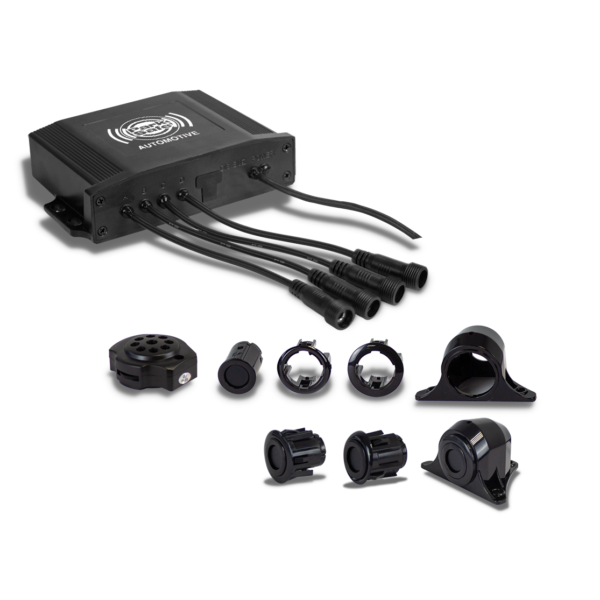

Parksafe Automotive Ltd 3 Sensor Step Detection System PSST1.3 We offer a range of ultrasonic sensor systems including, Side Detection, Wireless, and Rear sensors. They all provide their own particular benefits from helping to reverse safely to nearside blind spot awareness; particularly relevant where cyclists and pedestrians can otherwise go unseen. Our Side Detection System is fitted to the side of a vehicle increasing safety when turning or when manoeuvring at low speed. Particularly relevant for near side blind spot safety solutions where cyclists or pedestrians can otherwise go undetected. Specifications Power: 10-36 Volts DC Operating Current: 150mA Operating Temp: -20 to 80C Operating Frequency: 39.3 40.7 KHz Detection Angle: 120H/ 60V Distance Detection Accuracy: 1cm Detection Range: 0.05 to 2.5M Buzzer Volume: 75-105dB Box Contents 1 x CPU 3 x Sensor Heads 1 x Push Switch 1 x 2 Tone Buzzer 3 x 0 Degree Collars 3 x 12 Degree Collars 1 x Wiring Loom 20 x Cable Tie Sticky Pad Manual You will need to use a signal indicator switch with these, part code: PSPK3.DVS Approvals: CE, ROHS, E8 10R 04 7658

£ 188.58 188.58 GBP £ 188.58 VAT Excluded

£ 188.58 VAT Excluded

Not Available For Sale

This combination does not exist.


Internal Reference: 112393
