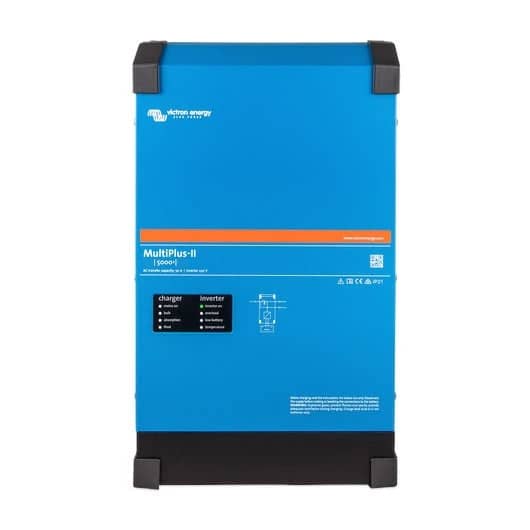

Victron Energy MultiPlus-II 24/5000/120-50 230V PMP242505010

This unit is ideal for anyone looking for a reliable, high-efficiency inverter/charger that ensures uninterrupted power, protects against overloads, and allows remote monitoring of the entire energy system.

£ 1,577.60 1577.6000000000001 GBP £ 1,577.60 VAT Excluded

£ 1,577.60 VAT Excluded

1 Inverter Input Voltage
- 19-33V
2 Inverter Output Voltage
- 230V
3 Inverter Output Power (VA)
- 5000VA - 4000W
4 Charger Input Voltage
- 187-265V
5 Charger Output Voltage
- 28.8V
6 Charger Output Current
- 120A
7 Transfer Switch (Amps)
- 50A
8 IP Rating
9 Bluetooth
10 Brand
11 Warranty

This combination does not exist.

Add to cart

1 Inverter Input Voltage: 19-33V

2 Inverter Output Voltage: 230V

3 Inverter Output Power (VA): 5000VA - 4000W

4 Charger Input Voltage: 187-265V

5 Charger Output Voltage: 28.8V

6 Charger Output Current: 120A

7 Transfer Switch (Amps): 50A

8 IP Rating: IP21

9 Bluetooth: No

10 Brand: Victron Energy B.V.

11 Warranty: 5 Years

Terms and Conditions

Internal Reference: 112060

The 24/5000-120-50 MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.

It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).

It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

Note: for a short period of time this product was called MultiGrid-II.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the MultiPlus-II 24/5000/120-50

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

When coupled with a Cerbo GX you can monitor and control your MultiPlus-II 24/5000 and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…”

Brand	Victron Energy
Manufacturer Part Number	PMP242505010
GTIN	8719076052913
Voltage	24V
Cont. Output Power at 25°C	5000VA
Peak Power	9000W
Output AC Voltage	230V
Transfer Switch	50A
Max. AC Input Current	50A
Max. Battery Charge Current	120A
Protection Category	IP22
Efficiency	96%
Bluetooth Compatible	Yes
Dimensions	H607 x W330 x D149mm
Weight	30Kg
Warranty	5 Years
Country of Manufacture	India

Data Sheet

Product Manual
