  2. Victron Energy MultiPlus-II 48/10000/140-100/100 230V PMP483105000

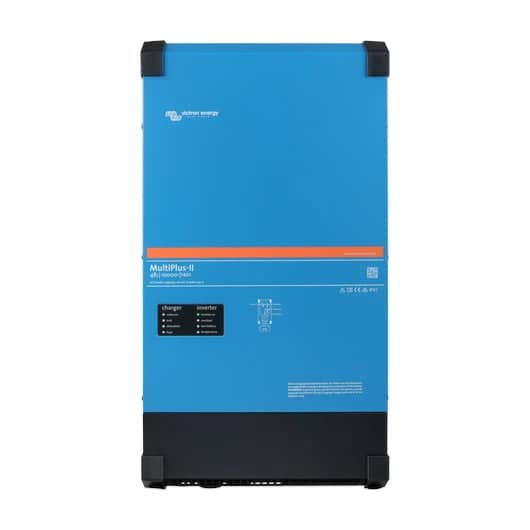

Victron Energy MultiPlus-II 48/10000/140-100/100 230V PMP483105000

https://trade.batteriesandsolar.co.uk/web/image/product.template/266815/image_1920?unique=82525e4

The Victron MultiPlus-II 48/10000/140-100 230V (PMP483105000) is a powerful inverter/charger that combines the functionalities of both the MultiPlus and MultiGrid. It is specially designed for Energy Storage Systems (ESS), offering seamless integration with MPPT Solar Chargers or Grid-tie PV Inverters.

£ 1,483.20 1483.2 GBP £ 1,483.20 VAT Excluded

£ 1,483.20 VAT Excluded

Not Available For Sale

  • 1 Inverter Input Voltage
  • 2 Inverter Output Voltage
  • 3 Inverter Output Power (VA)
  • 4 Charger Input Voltage
  • 5 Charger Output Voltage
  • 6 Charger Output Current
  • 7 Transfer Switch (Amps)
  • ​8 IP Rating
  • ​9 Bluetooth
  • 10 Brand
  • ​11 Warranty

This combination does not exist.

Contact Us
1 Inverter Input Voltage: 38-66V
2 Inverter Output Voltage: 230V
3 Inverter Output Power (VA): 10000VA - 8000W
4 Charger Input Voltage: 187-265V
5 Charger Output Voltage: 57.6V
6 Charger Output Current: 140A
7 Transfer Switch (Amps): 100A
​8 IP Rating: IP21
​9 Bluetooth: No
10 Brand: Victron Energy B.V.
​11 Warranty: 5 Years

Terms and Conditions

Internal Reference: 111457

The Victron MultiPlus-II 48/10000/140-100 230V is a versatile and powerful inverter/charger that combines the functionalities of the MultiPlus and MultiGrid series. It is designed to provide reliable power solutions for off-grid, grid-tied, and hybrid energy systems, making it an ideal choice for residential, commercial, and industrial applications.

This model is particularly suited for Energy Storage Systems (ESS), enabling seamless integration with MPPT Solar Chargers and Grid-tie PV Inverters to maximize self-consumption and energy efficiency. It offers a robust solution for users seeking uninterrupted power supply, advanced energy management, and remote monitoring capabilities.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the MultiPlus-II 48/10000/140-100

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

When coupled with a Cerbo GX you can monitor and control your MultiPlus-II 48/10000 and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…”

Brand

Victron Energy
Manufacturer Part Number

PMP483105000
GTIN

8719076044956
Voltage

48V
Cont. Output Power at 25°C

10000VA
Peak Power

18000W
Output AC Voltage

230V
Transfer Switch

100A
Max. AC Input Current

100A
Max. Battery Charge Current

140A
Protection Category

IP22
Efficiency

96%
Bluetooth Compatible

Yes
Dimensions

H642 x W363 x D206mm
Weight

49Kg
Warranty

5 Years
Country of Manufacture

India



Data Sheet

Product Manual
