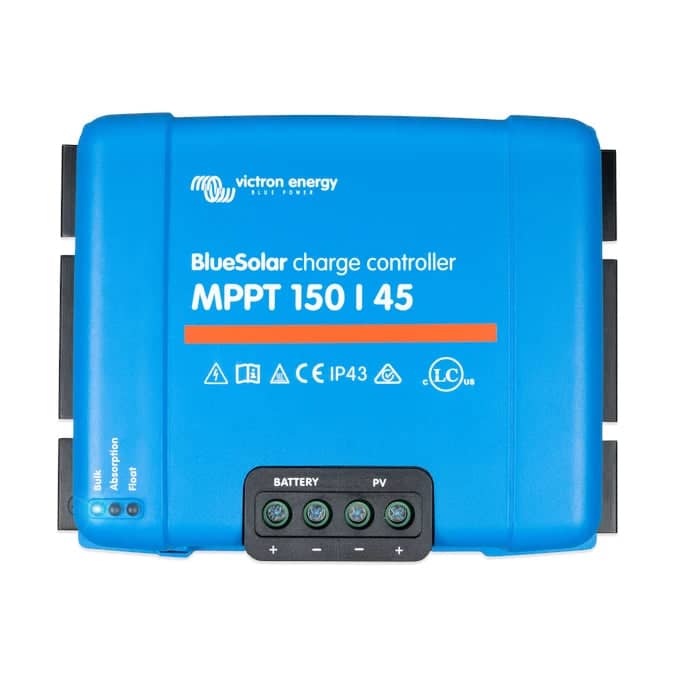

Features of the BlueSolar MPPT 150/45
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.
Flexible Charge Algorithm
Fully programmable charge algorithm and eight pre-programmed algorithms, selectable with a rotary switch.
Extensive Electronic Protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
Internal Temperature Sensor
Compensates absorption and float charge voltage for temperature.
Using the VE.Direct to Bluetooth Smart dongle with the BlueSolar MPPT 150/45 will allow you to see your MPPT information on iOS and Android devices, using the VictronConnect App. View information wirelessly such as battery status and solar panel power, plus other useful data.
