  2. Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can SCC115110511

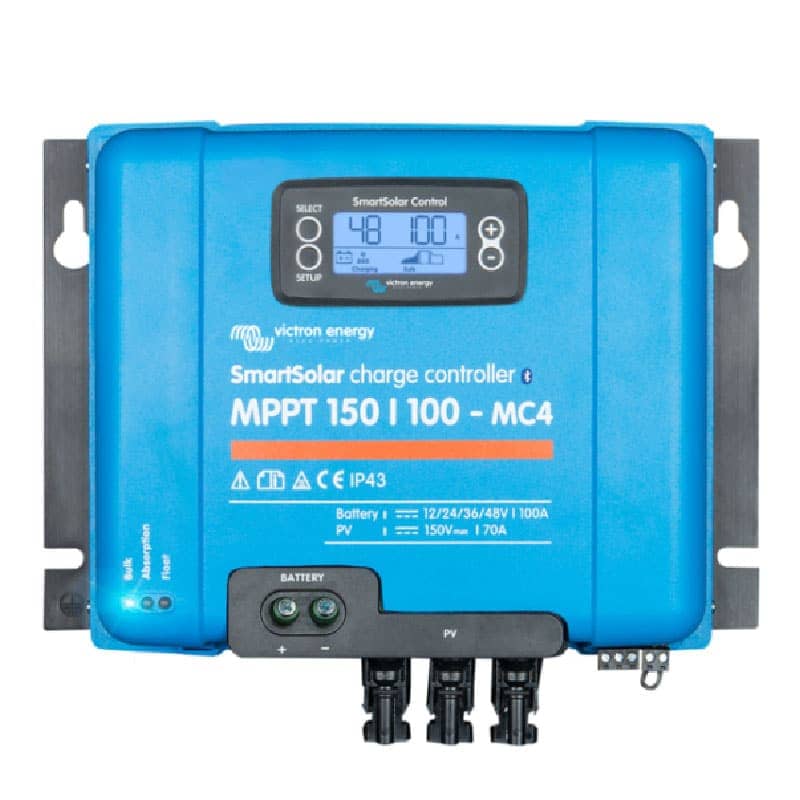

Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can SCC115110511

https://www.batteriesandsolar.co.uk/web/image/product.template/265260/image_1920?unique=f6f14a2

The Victron SmartSolar MPPT 150/100-MC4 VE.Can solar charge controller offers high-efficiency MPPT technology for 12V, 24V, 36V, and 48V battery banks. With advanced features like remote control via Bluetooth, programmable charge settings, and daisy chaining capabilities, it ensures optimal performance for both off-grid and grid-connected solar systems.

£ 420.00 420.0 GBP £ 420.00 VAT Excluded

£ 420.00 VAT Excluded

Not Available For Sale

  • ​Amps Range
  • ​Bluetooth
  • Charge Controller Type
  • Application
  • ​Brand (old)
  • Current (Amps) (A)
  • ​Warranty
  • ​IP Rating
  • ​Output Voltage
  • Input Connection Type
  • Max PV Voltage
  • Number of Outputs

This combination does not exist.

Contact Us
​Amps Range: 90+A
​Bluetooth: Yes
Charge Controller Type: MPPT
​Brand (old): Victron Energy B.V.
Current (Amps) (A): 100
​Warranty: 5 Years
Input Connection Type: MC4 Connectors
Max PV Voltage: 150V
Number of Outputs: 1

Terms and Conditions

Internal Reference: 109332

The Victron SmartSolar MPPT 150/100-MC4 VE.Can charge controller is designed for users who demand top performance from their solar system. It uses the latest MPPT (Maximum Power Point Tracking) technology to optimise the energy conversion from your solar array into usable power for your battery bank. Capable of handling battery voltages from 12V to 48V, the charge controller ensures your batteries are charged efficiently, even in fluctuating light conditions. It can recover from a severely depleted battery, starting from as low as 0 volts (provided the cells are not damaged).

The SmartSolar charge controller is fully programmable, allowing you to select the best settings for different types of battery chemistries such as lead-acid or lithium batteries. For added flexibility, the VE.Can SmartSolar charger features Bluetooth connectivity, enabling remote setup and monitoring via the VictronConnect app. This allows users to view critical data such as battery voltage, current, and historical trends directly from their smartphone or tablet. With the CAN bus ports, additional units can be daisy-chained together, synchronising their charge stages for a larger, more efficient system.

For those looking to expand their solar system, the SmartSolar MPPT 150/100-MC4 can communicate with other chargers via CAN bus, allowing for seamless integration and management. You can also access your system remotely through the Victron Remote Management Portal (VRM) if your system is connected to the internet. The addition of the optional VE.Direct port further enhances your system by providing options for live data monitoring or integration with third-party devices such as streetlight controllers.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Solar Charge Controller

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.


Models

12/24/36/48 Volt


MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others.


Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.


Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units.


When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.


Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).


SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.

FeatureSpecification
BrandVictron Energy
Manufacturer Part NumberSCC115110511
Voltage Models12V, 24V, 36V, 48V
Max. Charge Current70A to 100A (depending on model)
Maximum PV Open Circuit Voltage150V
Max. PV Short Circuit Current100A
CAN BusYes (for daisy-chaining)
Bluetooth EnabledYes
Remote Monitoring & ControlVictronConnect App, VRM Portal
VE.Direct PortYes
Dimensions (HxWxD)250 x 130 x 70 mm
Weight1.5 kg
Warranty5 Years
Country of ManufactureIndia

Datasheet

Product Manual
