182L S/S Double Drawer Freezer DW210 BTX VFDW210.2BTXPF

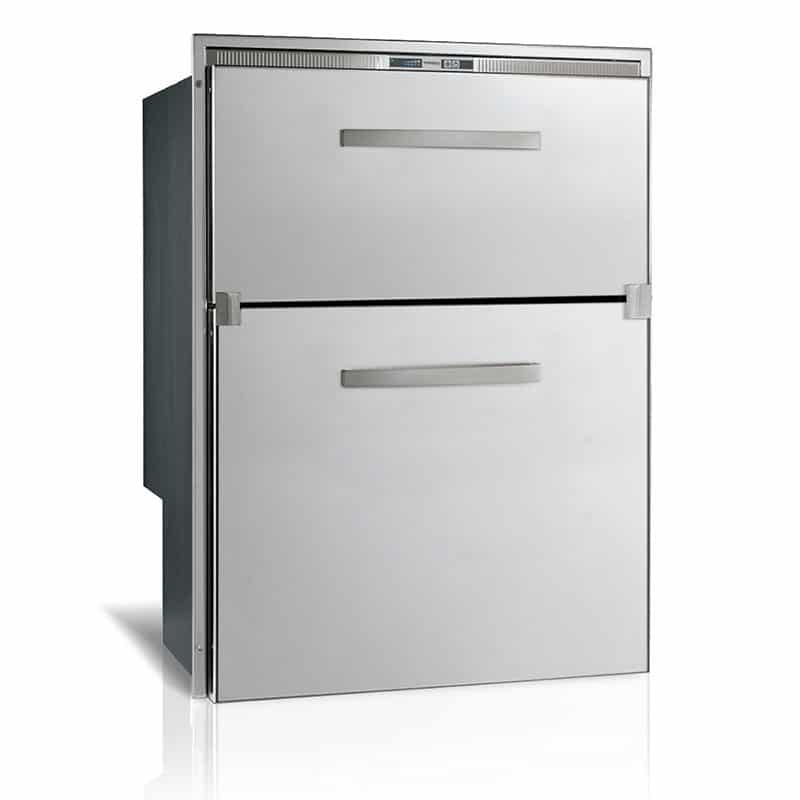

Vitrifrigo DW210 BTX - 182 Litre Stainless Steel Double Drawer Freezer - VFDW210.2BTXPF The Ocean stainless twin drawer fridges and freezers are one of Vitrifrigo flagship products. The elegant design finished in stainless steel throughout is matched by great functionality, excellent access and makes the product aesthetically pleasing. Available in configurations ranging from 35 litres to a generous 300 litres.
DW210 (182 litre) 2 drawer fridge, freezer or fridge freezer can be integrated in any type of boat interior making it ideal for galley or wet bar applications. Key Features
Available in the following configurations: Twin drawer fridge; Twin drawer freezer; Top drawer freezer and lower drawer fridge, Brushed Stainless Steel door, curved handle and standard fitting frame, Air cooled compressor (integral at base), Compressor voltage: Automatically runs on 12V or 24V, by sensing the input voltage with built in low voltage cut out and high voltage protection. Upgradeable to run on 12/24V and 110/240V AC 50/60 Hz (select option above), Temperature control using electronic LED thermostat, Supplied with internal drawer dividers, 144 litres of total refrigeration capacity.
Key Checks Before Purchase
Check sizing and if there is enough space to mount the compressor behind or if you need to select remote mount with couplings, Check and select voltage required.
Please be advised this item requires palletised delivery.
Technical Data
Total volume lt 182 | Upper compartment volume lt 78 | Lower compartment volume lt 104 | Net weight kg. 61 | Power supply 12/24Vdc (also availble with dual electronic box (12/24Vdc - 100-240Vac 50/60Hz) | Nominal consumption 61W | Overall width mm. 740 | Overall height mm. 880 | Overall depth mm.
630
Dimensions
overall dimension with Door Inside mounting flange
built-in dimension with Door Inside - Door Outside mounting flanges
Features & Plus
Double Door Position
One single fitting frame for 2 versions: DOOR INSIDE and DOOR OUTSIDE
Steelock
design and technology into a "top" lock (Flush Flange only)
LED Thermostat
An elegant thermostat for a perfect temperature setting
Vent Position
The new Steelock latch has a vent position for air circulation during periods of non-use.
Venting Frame
New hole system for better air circulation and cooling efficiency
Drawers
multi purpose spacious and sturdy drawers
Stainless steel 316
Models of the drawer series are made of stainless steel 316
Led light
LED light for a perfect lighting in your fridge
D power (optional)
12/24Vdc - 100-240Vac 50/60Hz dual electronic control
Literature DW-CDW series user guide |
Internal Reference:
107001
