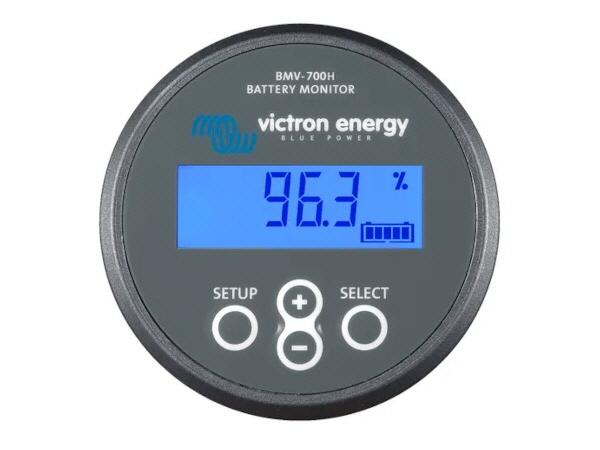

Victron Energy Battery Monitor BMV-700H BAM010700100

https://trade.batteriesandsolar.co.uk/web/image/product.template/263405/image_1920?unique=7479728

The Victron BMV-700H Battery Monitor is a high-precision device designed to calculate ampere hours consumed and the state of charge of a battery.

£ 390.40 390.40000000000003 GBP £ 390.40 VAT Excluded

£ 390.40 VAT Excluded

Not Available For Sale

  • ​Amps Range

This combination does not exist.

Contact Us
​Amps Range: 90+A

Terms and Conditions

Internal Reference: 105689

The BMV-700H is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Battery ‘fuel gauge’, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.

Easy to install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.

Standard features

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed
  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10.000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6,5 – 95V
  • High current measurement resolution: 10 mA (0,01A)
  • Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V



Brand

Victron Energy
Manufacturer Part Number

BAM010700100
Supply Voltage Range

6-85 VDC
Battery Capacity (Ah)

1-9999
Temperature Sensor

Optional
VE.Direct Communication Port

Yes
Protection Category

IP55
Front Bezel

69 x 69mm
Body Diameter & Depth

52 x 31mm
Warranty

5 Years

Manual

Data Sheet
