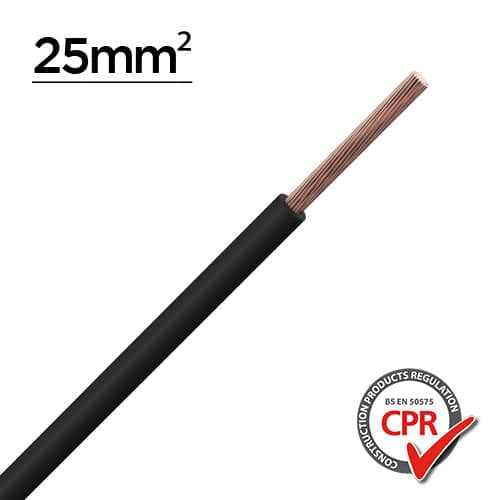

25mm Tri Rated Cable Black
Tri-Rated cable, also known as BS6231 cable, panel wire or switchgear cable meets the specifications of all three standard setting bodies; the British Standards Institute (BSI), Underwriters Laboratories (UL) and the Canadian Standards Association (CSA). This cable is also referred to as H07V2-K and H05V2-K cable under the European harmonisation (HAR) designation code. CPR-Compliant options 0.6/1kV voltage rating Heat resistant PVC insulation Class 5 stranding Technical Information Voltage Rating: 0.6/1kV Conductor Stranding: IEC 60228, class 5 plain annealed copper Temperature Rating: -15°C to +90°C (BS 6231)-15°C to +105°C (UL, CSA) Bending Radius: 5 x OD Flame Retardant to: BS EN 60332-1-2 Manufactured to: BS EN 50525-2-31
| Brand (old): Batteries & Solar |
| Cable Colour: Black |
| Cable Diameter: 25mm (3AWG) |
| Cable Shape: Round |
| Cable Sheath Type: PVC |
| Number of Cores: Single Core |
Internal Reference:
105058
