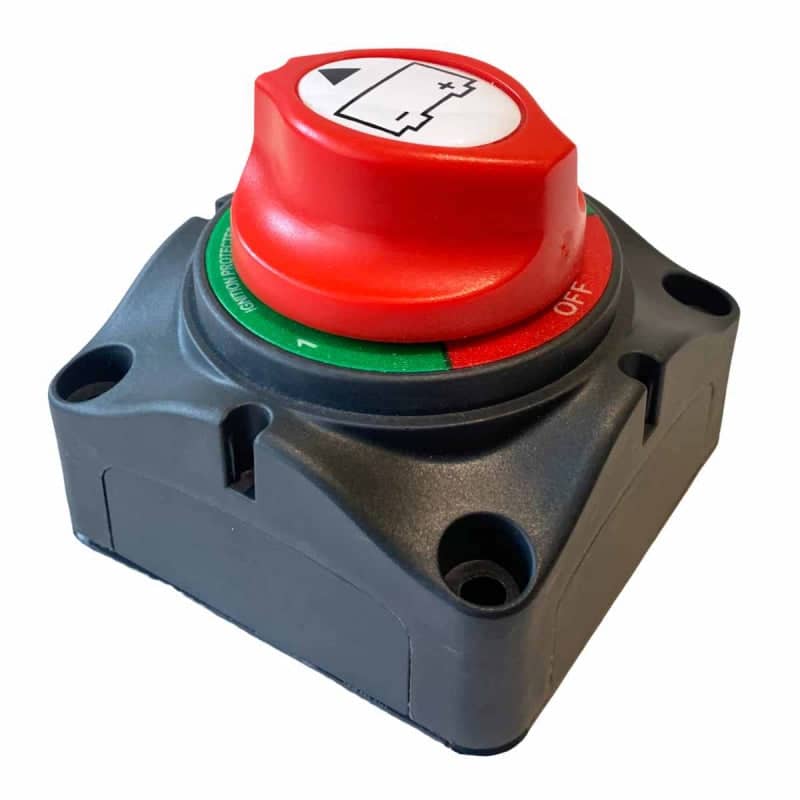

3 Way Rotary Isolator 200A 181613

3 Way Rotary Isolator 200A    A high quality battery isolator switch for camper van, motor home, car or marine use. This battery isolator switch is designed to cut off the power to the battery quickly in the event of an emergency or to ensure no unexpected power draw from the battery during vehicle storage. This particular isolator switch has 3 connection posts so this can be used to switch between two batteries or to combine the loads of both batteries. Supplied with 4 x 40mm x M5 hex bolts and nuts. RoHS compliant and carrying CE approval.  Actuator NOT removable on this model. Important Notice: Please note that the images of the product shown above are for illustrative purposes only. While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer. We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product. If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270. At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you. Thank you for choosing Batteries and Solar for your purchase.   Key Features Voltage 50V Current Rating 200A 12-50V DC Continuous IP Rating IP65

Specifications

Physical information
Type Battery
No./mount. holes 3
Dist. mount. holes mm 104
Key No
Material PBT
Protection degree IP 54
CE approval Yes Electrical information Voltage 12-50 A/cont. 200 Amp (5 sec) 1000
