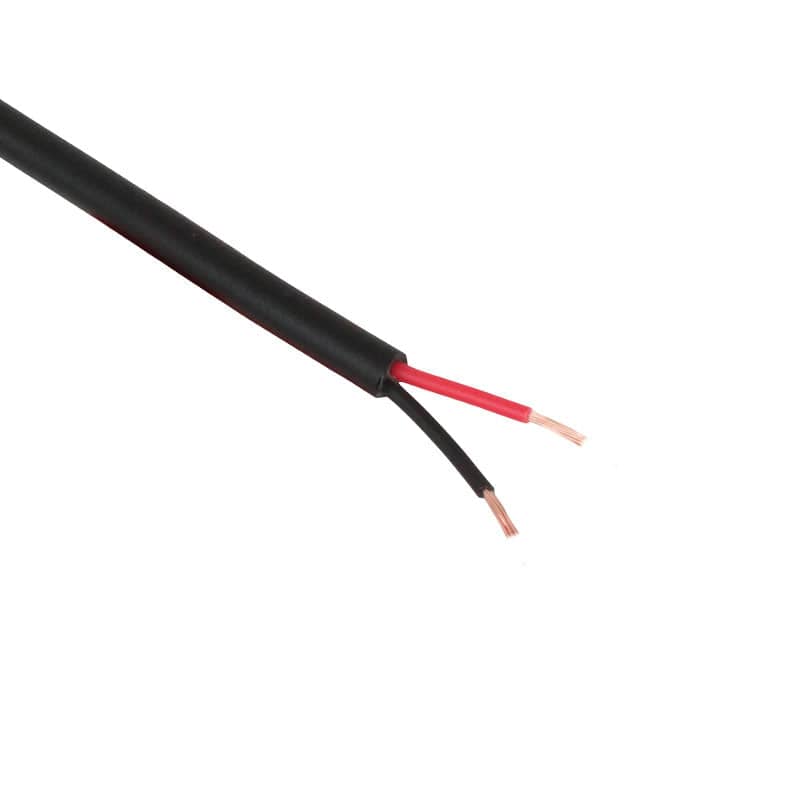

2 Core Round Thinwall Automotive Cable 2mm 25A C204RTW-100BRB

https://www.batteriesandsolar.co.uk/web/image/product.template/261137/image_1920?unique=7ad44ae
2 Core Round Thinwall Automotive Cable is a modern, space-saving cable designed for 12V and 24V low voltage systems in automotive, caravan, and custom wiring applications. With a 2mm² conductor size and a 25A current rating, this cable is ideal for vehicle harnesses and installations where space, weight, and durability are key considerations.

£ 1.36 1.36 GBP £ 1.36 VAT Excluded £ 1.63

£ 1.36 VAT Excluded £ 1.63

Not Available For Sale

  • ​Amps Range
  • ​Brand (old)
  • Cable Colour
  • Cable Diameter
  • Cable Shape
  • Cable Sheath Type
  • Current (Amps) (A)
  • Number of Cores

This combination does not exist.

Contact Us
​Amps Range: 20-29A
​Brand (old): Batteries & Solar
Cable Colour: Black
Cable Diameter: 2.5mm (13AWG)
Cable Shape: Round
Cable Sheath Type: Thinwall
Current (Amps) (A): 29.0
Number of Cores: 2 Core

Terms and Conditions

Internal Reference: 101535

This cable is a technically advanced alternative to traditional BS6862 PVC cable, offering higher amp capacity, reduced bulk, and improved thermal resistance. Featuring a hard-grade thermoplastic PVC insulation and plain copper conductors, it complies with ISO 6722 Class B and EN 13602 standards, ensuring long-lasting, safe performance in a range of environments. The thinwall construction offers up to 30% space saving, making it ideal for compact installations or complex looms in post-1995 vehicles.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

  • 2mm² twin-core cable with 25A current rating
  • Thinwall design – approx. 30% smaller volume than standard PVC cable
  • Plain copper conductor ensures efficient power transfer
  • Hard-grade PVC insulation for extended lifespan and heat resistance
  • Complies with ISO 6722 Class B and LV112 Type B standards
  • Temperature range from -40°C to +105°C, with excursions up to +120°C
  • Ideal for use in 12V and 24V systems (maximum 60V)
  • Resistant to petrol, lubricating oils, and diluted acids
  • Commonly used in automotive wiring looms post-1995
  • Preferred by leading OEMs for modern vehicle systems

SpecificationDetails
Product Name2 Core Round Thinwall Automotive Cable 2mm 25A
Product CodeC204RTW-100BRB
Conductor Area2.0mm²
Current Rating25 Amps
Core Count2 Core (Round Configuration)
Conductor MaterialPlain Copper (C-EPT1)
Insulation MaterialHard Grade Thermoplastic PVC – Lead-Free
Standards ComplianceISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B
Temperature Range-40°C to +105°C (up to +120°C excursions)
Voltage Range12V / 24V (Maximum 60V)
Chemical ResistanceResistant to petrol, oils, and diluted acids
ApplicationAutomotive wiring, trailer systems, vehicle harnesses
