Fogstar Energy Server Rack Battery Cabinet 15kWh Capacity
Internal Reference:
101269

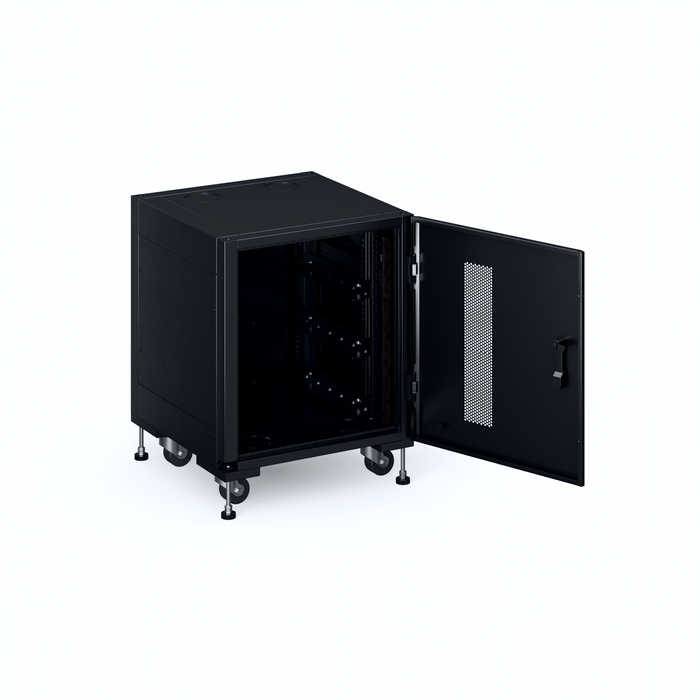

Fogstar Energy Server Rack Battery Cabinet 15kWh Capacity
Designed in the UK, our Fogstar Energy Storage Cabinets use the highest quality materials and the most innovative design techniques to get the very best from your energy storage system.
Recommended for use with our <a href="https://batteriesandsolar.co.uk/products/fogstar-energy-server-rack-battery-48v-5-12kwh" target="_blank">Fogstar ESR51.2V Server Rack Batteries, the Fogstar ESR51.2V Energy Storage Cabinets have been carefully designed to simplify the installation, and maintenance of your system.
We offer our cabinets in two different sizes, 3 Rack Cabinet (15kWh) and <a href="https://batteriesandsolar.co.uk/products/fogstar-energy-server-rack-battery-cabinet-30kwh-capacity">6 Rack Cabinet (30kWh) allowing you to expand your storage as, and when required.Many manufacturers suggest connecting batteries together via the positive and negative terminals however, in our experience, this creates an imbalance between cells. Therefore, we've implemented a busbar system in our cabinets to distribute the load evenly across the cells.Straight away you'll notice the integrated, high quality, thick nickel plated copper busbars, enabling users to connect our batteries in parallel with ease.The cabinets feature vented panelling at the front of the units, allowing air to flow around the battery units. We've also created unique circular cut-out cable access points in both the bottom and top of the units. These allow for a neat and tidy cabling system, ensuring easy access to your system should anything need changing quickly.Cabinet dimensions: 600 x 625 x 800mm
Important Notice:
Please note that the images of the product shown above are for illustrative purposes only.
While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.
We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.
If you have any questions or concerns, please feel free to contact our customer support team for further assistance at <a href="mailto:support@batsol.co.uk" data-mce-href="mailto:support@batsol.co.uk">support@batsol.co.uk or phone us at 01752 656270.
At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.
Thank you for choosing Batteries and Solar for your purchase.
Key Features
Confidence in design, build, and components with an 8-year warranty.
Self-heating at temperatures <5°C, enabling charging in temperatures as low as -20°C.
Option to house the battery in 3 or 6 energy storage cabinets.
Simplifies installation and maintenance of the energy storage system.
Compact size
Specifications
Warranty
8 years
Screen
4.3-inch TFT LCD Touchscreen
Expandability
Up to 16 units in parallel, potential 81.92kWh
Cells
16 Grade A 100Ah EVE cells, 8000 cycles @ 80° DOD
DC Breaker
125Amp
Rack Design
3.5U, ISO(W) x160(H) x 440(L) mm
Heating
Self-heating at <5°C, enables charging at -20°C
Cabinet Sizes
3 Rack Cabinet (15kWh)
Cabinet Dimensions
600 x 625 x 800mm
Busbar System
Nickel-plated copper for even load distribution
Ventilation
Vented panelling for airflow
Cable Access
Circular cut-out points for neat cabling
