6 Way Dual Circuit Fuse Board 5025B|1

https://trade.batteriesandsolar.co.uk/web/image/product.template/260862/image_1920?unique=9905275

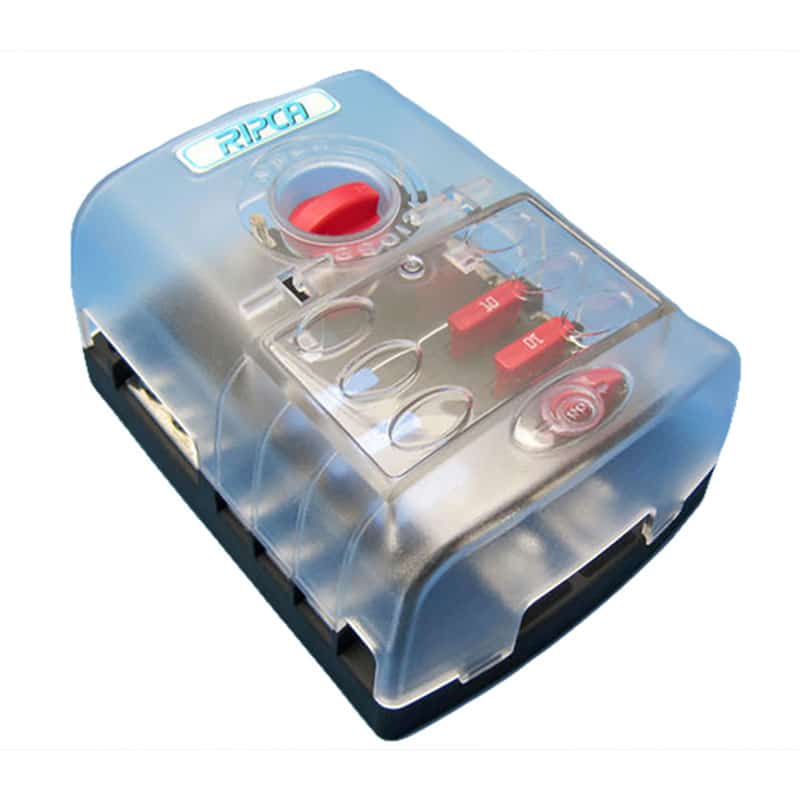

The Ripca 6 Way Dual Circuit Fuse Board (5025B|1) is a robust and versatile fuse box perfect for managing electrical circuits in camper vans, motorhomes, boats, and other 12/24V systems. It includes two positive circuits and one negative circuit, all connected to M5 studs for easy installation. This fuse board is built with a polycarbonate base and a clear polycarbonate cover for added protection and durability. Each positive circuit supports up to three standard blade fuses, while the negative circuit features a 6-pole connector block. With a maximum amperage of 100A per block and 30A per circuit, this board offers reliable protection for your electrical system.

£ 27.71 27.71 GBP £ 27.71 VAT Excluded

£ 27.71 VAT Excluded

Not Available For Sale

  • Fuse Type
  • Max Fuse Holder operating Voltage
  • Max Fuse Holder Current
  • Max Fuse Current (Per Circuit)
  • 10 Brand
  • ​11 Warranty

This combination does not exist.

Contact Us
Fuse Type: Blade (Standard)
Max Fuse Holder operating Voltage: 32V
Max Fuse Holder Current: 100A
Max Fuse Current (Per Circuit): 30A
10 Brand: Ripca
​11 Warranty: 1 Year

Terms and Conditions

Internal Reference: 100439

The Ripca 6 Way Dual Circuit Fuse Board (5025B|1) is a robust and versatile fuse box perfect for managing electrical circuits in camper vans, motorhomes, boats, and other 12/24V systems. It includes two positive circuits and one negative circuit, all connected to M5 studs for easy installation. This fuse board is built with a polycarbonate base and a clear polycarbonate cover for added protection and durability. Each positive circuit supports up to three standard blade fuses, while the negative circuit features a 6-pole connector block. With a maximum amperage of 100A per block and 30A per circuit, this board offers reliable protection for your electrical system.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

6-way dual circuit fuse board with positive and negative buses

Supports up to 100A per block and 30A per circuit

2 positive circuits with common buses for each (3 blade fuses per circuit)

1 negative circuit with a common bus and 6-pole connector block

Made from durable polycarbonate with a clear protective cover

M5 studs for easy connection to common buses

Ideal for camper vans, motorhomes, and boats

Accepts standard blade fuses (1-40A)

CategoryDetails
Maximum Amperage (Circuit)30A per circuit
Maximum Amperage (Block)100A per block
Maximum Voltage32V DC
Base MaterialPolycarbonate
Cover MaterialClear polycarbonate
Positive Circuit A1x common bus, 3 blade fuses
Positive Circuit B1x common bus, 3 blade fuses
Negative Circuit1x common bus, 6-pole connector block
Common BusesM5 studs
Fuse TypeStandard blade fuses (1-40A)
